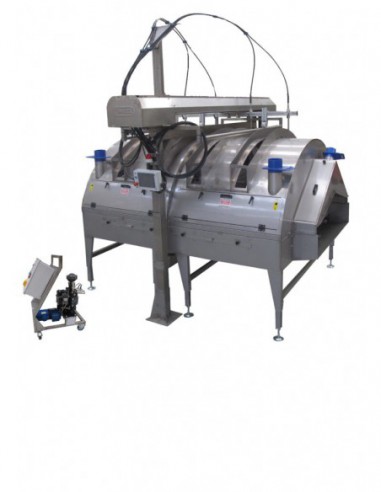

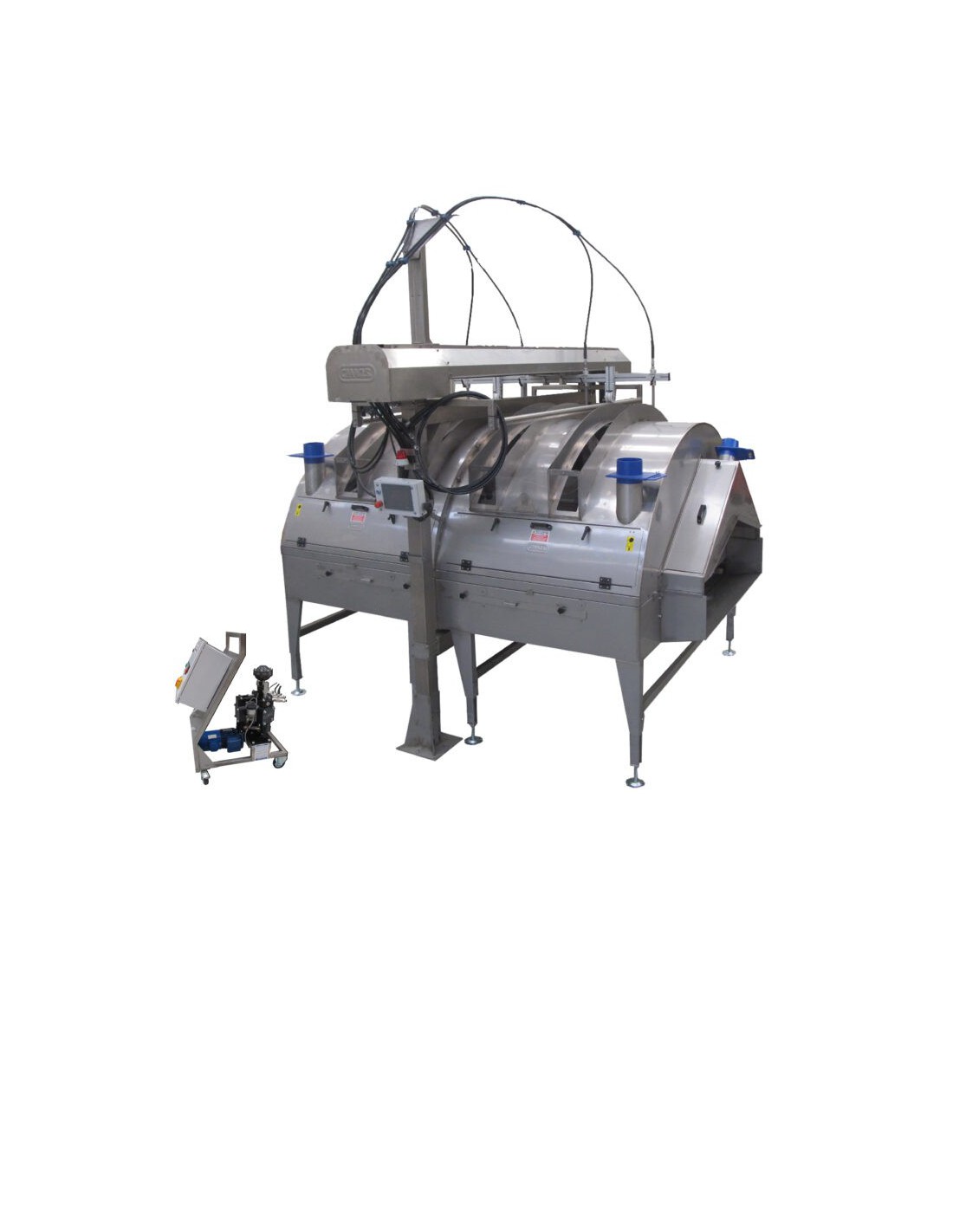

MONO-AXIS AIRLESS STATION 4.0 WITH TRANSLATOR FOR APPLICATION OF GLAZE, ENGOBE, CRYSTALLINE AND FINAL PROTECTION FOR SLABS UP TO 1950 mm

COMPOSED OF:

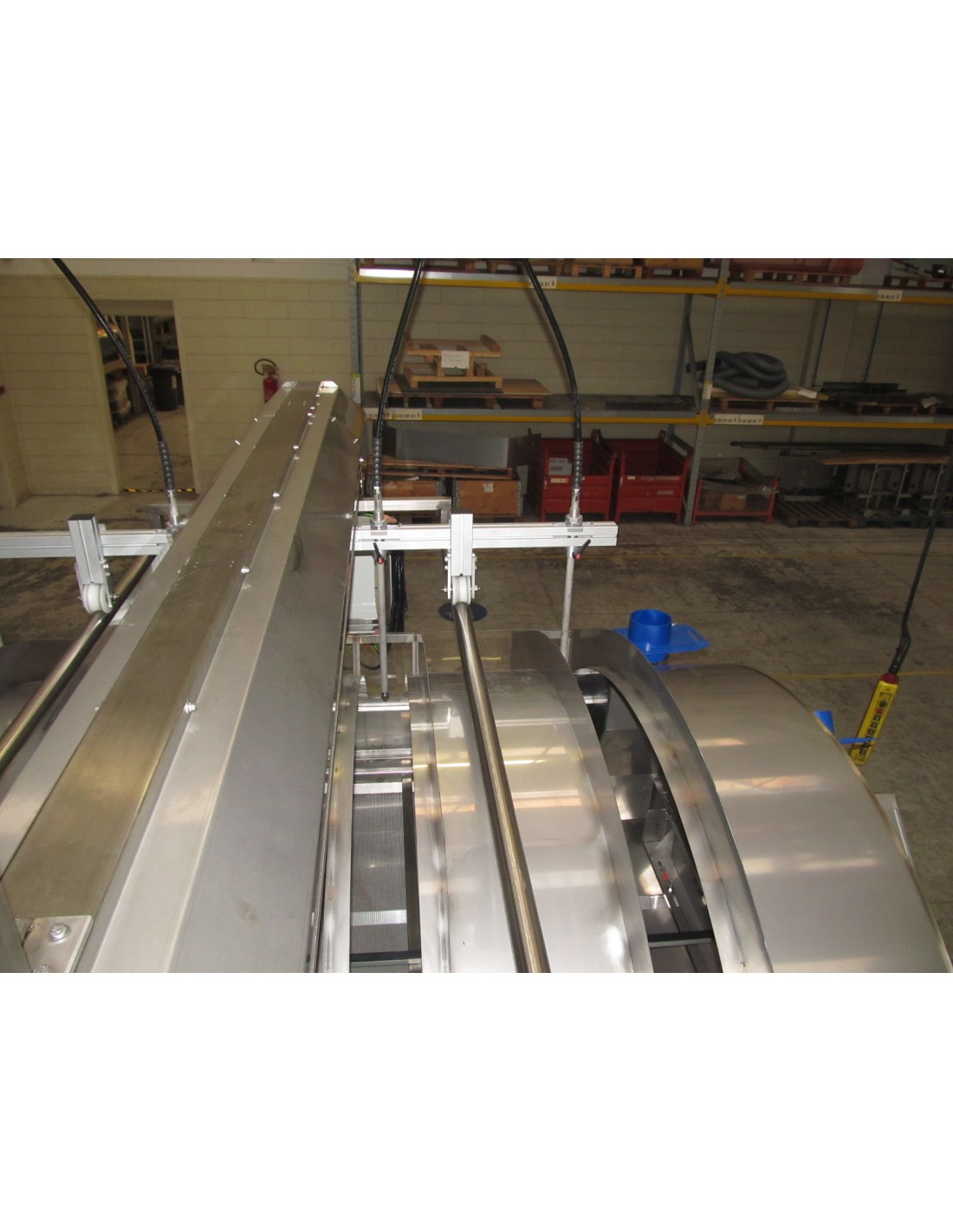

N°1 TRANSLATOR GROUP WITH ALTERNATIVE LINEAR MOVEMENT

N°4 SPECIAL SPRAY-GUNS AIRLESS EQUIDISTANT FROM THE SURFACE OF THE SLAB TO ALLOW A PERFECTLY HOMOGENOUS THIN ENGOBE LAYING

N°6 DUST SUCTION SOCKETS TO AVOID FUMES ON WORK ENVIRONMENT DURING PRODUCTION

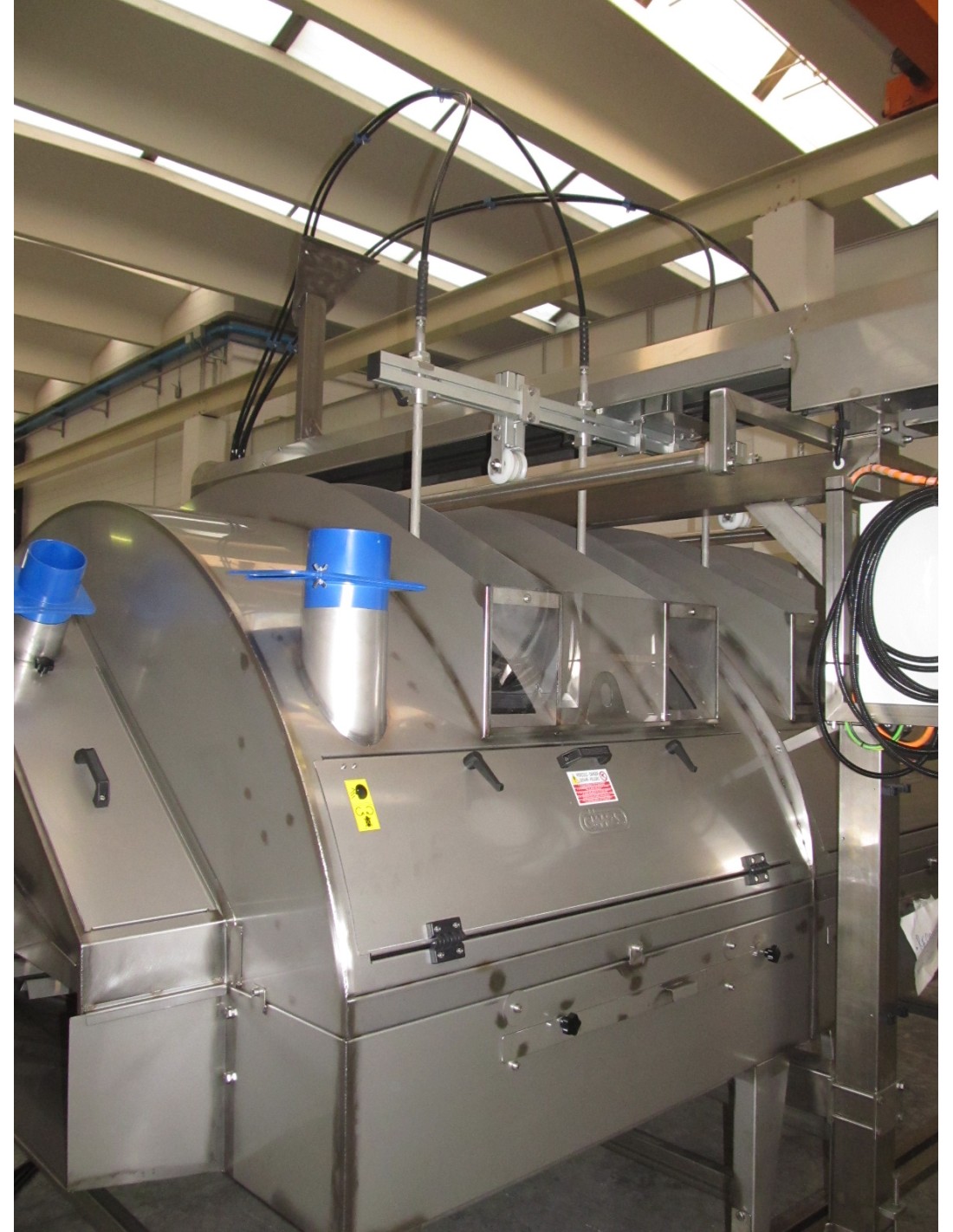

N°1 STAINLESS STEEL 304 CABIN

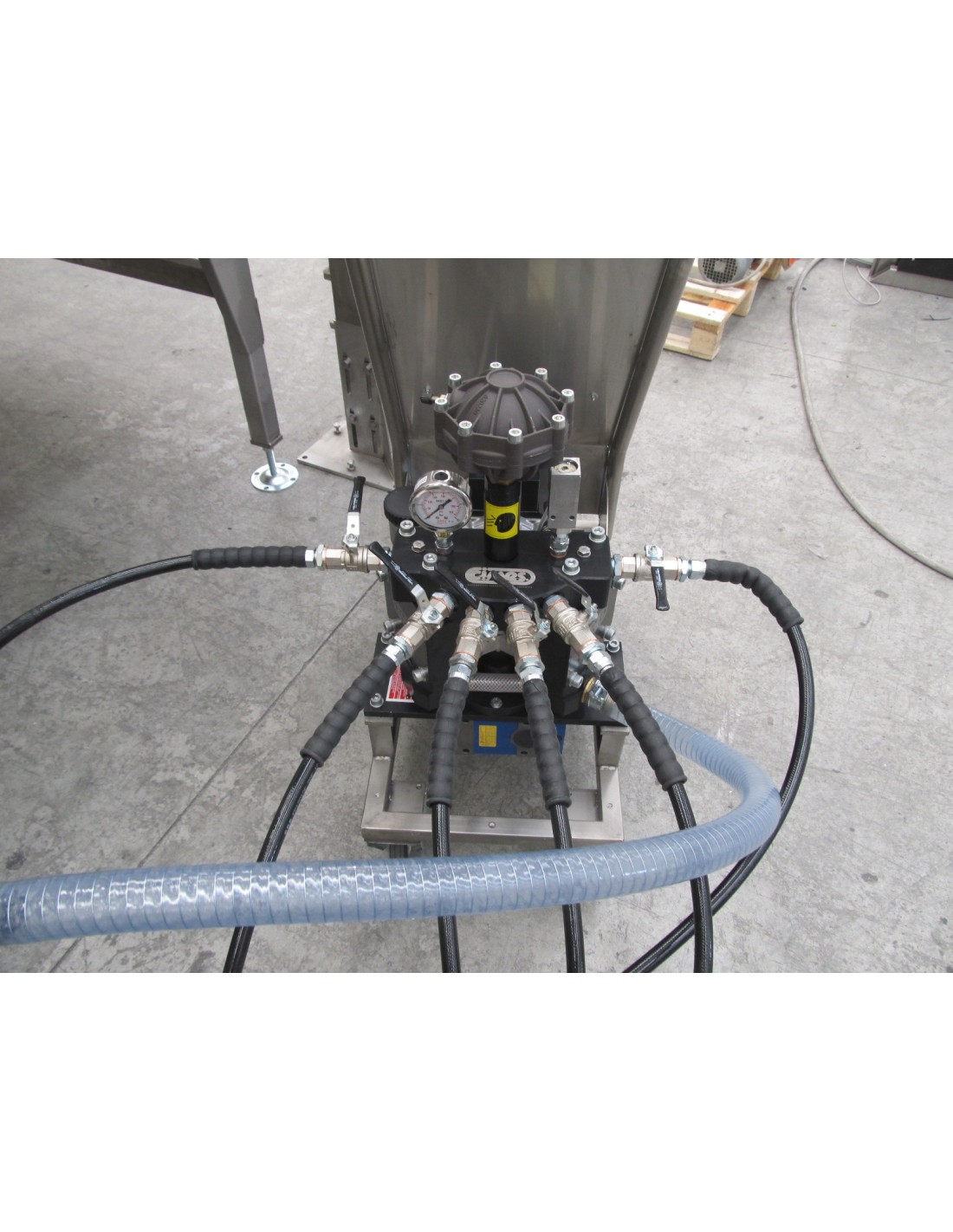

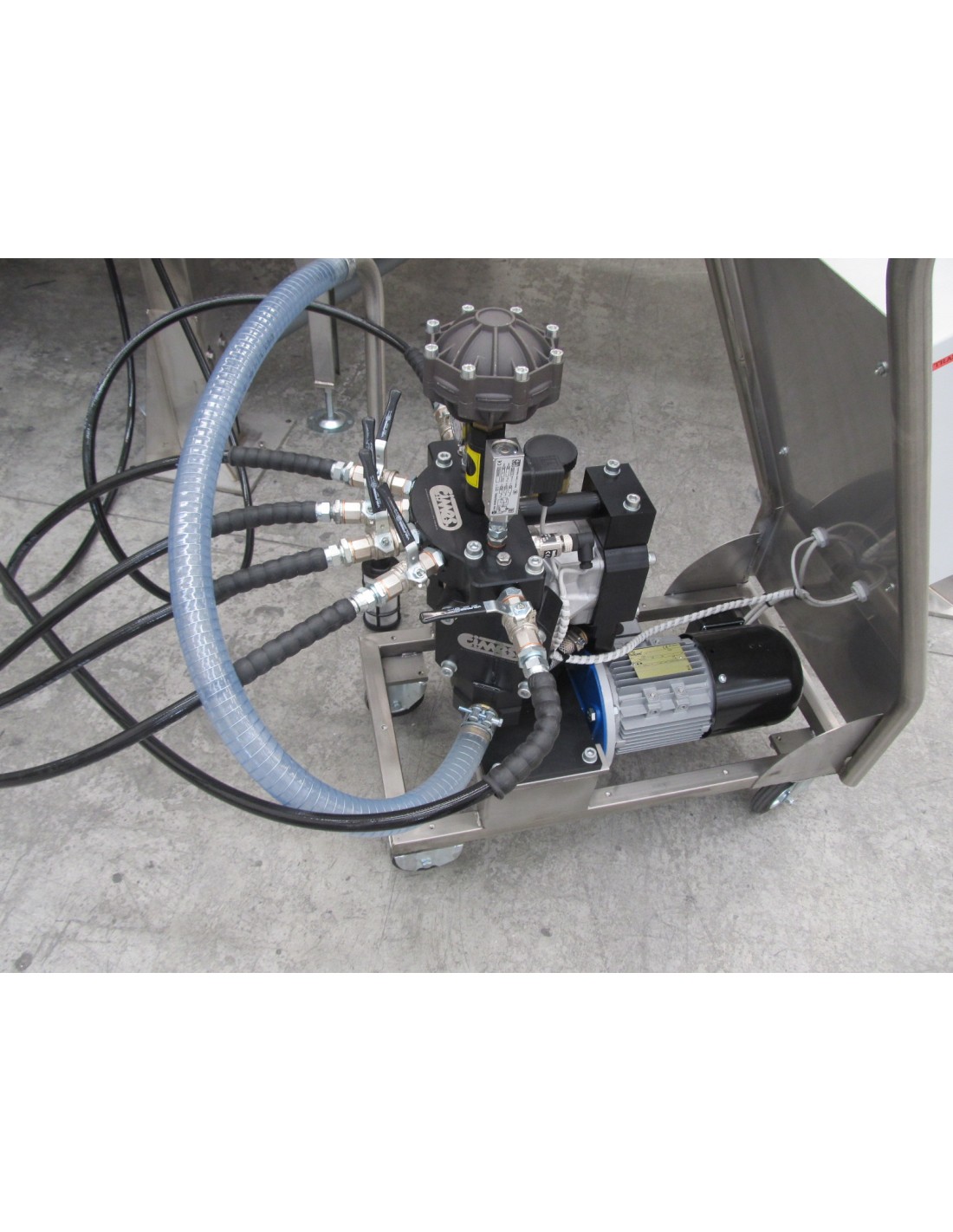

N. 1 ELECTRO-MECHANICAL TROLLEY MOUNTED PUMP AIRLESS MULTI-J-E 25 LT, OPERATED BY MOTOR HP. 1,5 EQUIPPED WITH PRESSURE SENSOR WITH FEEDBACK TO MAINTAIN A PRECISE AND CONSTANT PRESSURE FOR GLAZE FEEDING

CAPACITY: 25 LT./1′

MAX PRESSURE: 25 BAR

WORKING PRESSURE: 2 ÷ 25 BAR

ELECTRICAL SYSTEM ON BOARD MACHINE 4.0

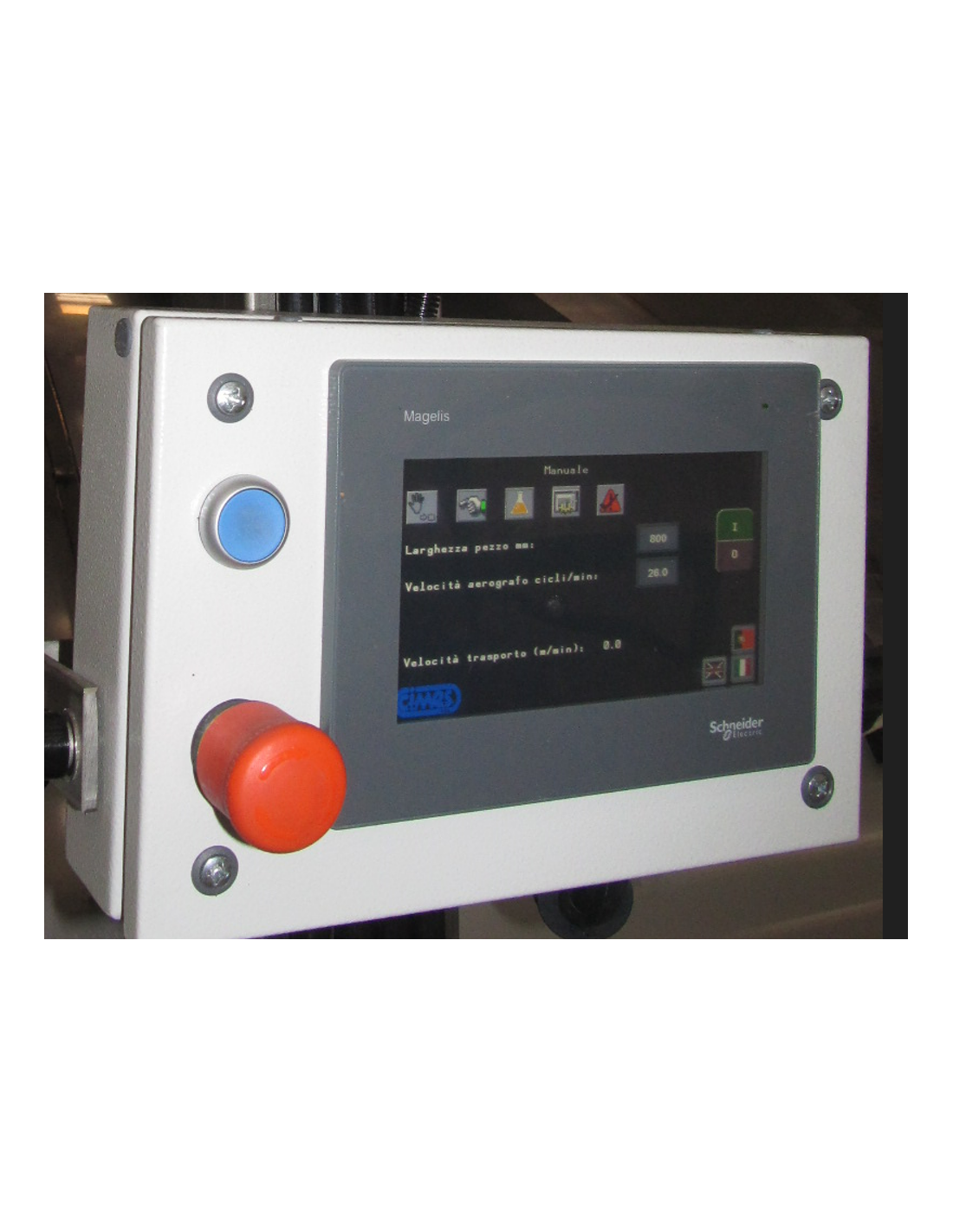

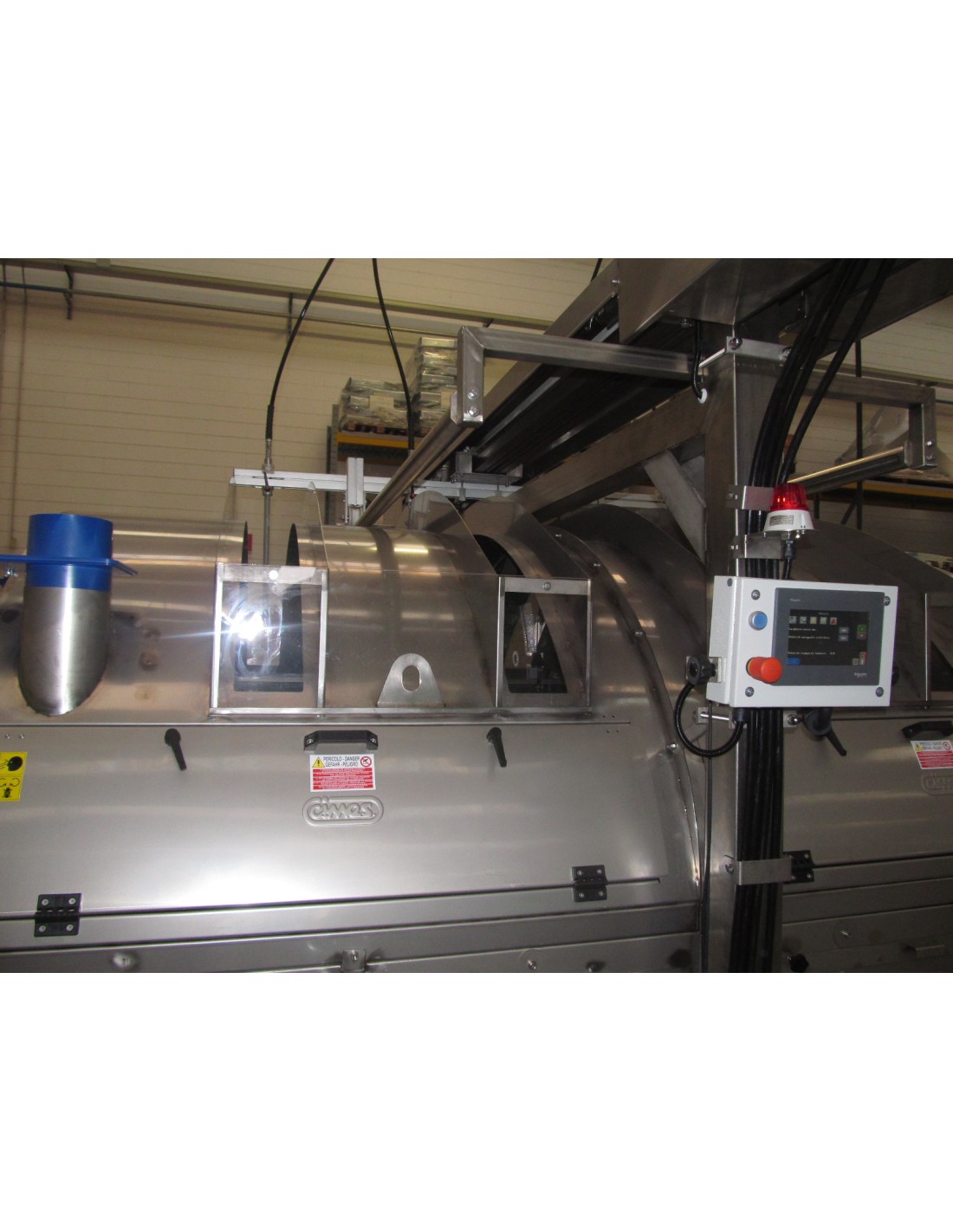

CONTROL PANEL WITH TOUCH-SCREEN

AUTOMATIC INTERNAL WASH COMPOSED OF:

N ° 2 ROTATING WASHING HEADS WITH PNEUMATIC MOVEMENT WITH HIGH PRESSURE NOZZLES FOR CLEANING THE UPPER PART OF THE CAB

N ° 2 INTERNAL HYDRAULIC NETWORKS WITH HIGH PRESSURE NOZZLES FOR CLEANING THE BOTTOM OF THE CAB

N ° 1 HYDRAULIC POWER UNIT WITH CERAMIC PISTON PUMP 20 HP THREE-PHASE ELECTRIC MOTOR

SIZES: UP TO 1950 mm
